K series bevel helical gearbox

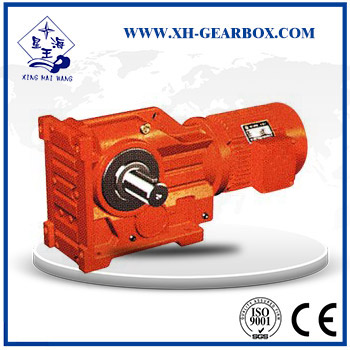

K series helical bevel gear motor
K series helical bevel gear motor
1,little vibration, low noise, energy-saving high;
2,short delivery term
3,flange and foot mounting
4,with all kinds of motor

RELATED PRODUCTS

Quick Details





Gearing Arrangement: Helical
Input Speed: ?1500 (RPM)



Output Torque: 200-50000 (N.m)
Output Speed: ?280(RPM)



Rated Power: 0.18-200 (kw)
Place of Origin: Zhejiang, China (Mainland)



Model Number: K series
material: cast iron housing
Brand Name: XINGHAIWANG
Color: According to client's requirement
certification: ISO9001:2008



By Industry


Packaging & Delivery
Packaging Details: standard export packing ,inner packing is opp bag, outside packing is wooden case, or According to the
                                    customer's requirements packaging.
Delivery Detail: 20 days after confirmation

Specifications
1,little vibration, low noise, energy-saving high;
2,short delivery term
3,flange and foot mounting
4,with all kinds of motor

Specifications



1,with one shaft output or two shaft output ;
2,flange and foot mounting;
3,with some kinds of motor;
4,min qty: 1set;



Technical data:

1,output torque:200-50000(N.m)

2,rated power:0.18-200(kw)

3,input speed:≤1500 (rpm)

4,output speed:≤280(rpm)

5,transmission ratio:≥5.36

6,series:3

7,install form:M1-M6

8,Model no. :K/KA/KF/KAF/KH/KHF(37/47/57/67/77/87/97/107/127/157/167/187)

Other

1,Driving in a variety of forms: motor straight league, user with motor, pulley, wheel drive,   couplings straight league drive, the handwheel device etc
2,Output in a variety of forms: can hollow shaft output and solid shaft output, hollow shaft flange and solid shaft flange, hollow shaft torque arm type, solid shaft torque arm type, etc
3,Installed in a variety of forms: can base mounting, flange installation, torque arm installation, etc

If you need any other style needs, please don't feel trouble direct contact with me.



Parameters list

Type 37 47 57 67 77 87 97 107 127 157 167 187
Structure form K KA KF KAF KAZ KAT KAB
Input power(KW) 0.18-3 0.18-3 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 3-45 7.5-90 11-160 11-200 18.5-200
Transmission ratio 5.36-106.38 5.81-131.87 6.57-145.14 7.14-144.79 7.24-192.18 7.19-197.37 8.95-176.05 8.74-1410.46 8.68-146.07 12.65-150.41 17.28-163.91 170.27-180.78
Allowable torque(N.m) 200 400 600 820 1550 2700 4300 8000 13000 18000 32000 50000
Weight(kg) 11 20 27 33 57 85 130 250 380 610 1015 1700



Install form

Structural drawing
