Gearing Arrangement: Helical
|
Output Torque: 200-18000(N.m)
|
Rated Power: 0.18-200 (kw)
|
| Model Number: F series color: other shaft material: 45Cr |
Brand Name: XINGHAIWANG housing material: cast iron housing input form: IEC flange, inline with motor, solid shaft |
certification: ISO9001:2008 gear material: 20CrMnTi output form: solid shaft, hollow shaft mounting: FLANGE, FOOT |
By Industry
Packaging & Delivery
Packaging Details: standard export packing ,inner packing is opp bag, outside packing is wooden case, or According to the
customer's requirements packaging.
Delivery Detail: 20 days after confirmation
Specifications
1,little vibration, low noise, energy-saving high;
2,short delivery term
3,flange and foot mounting
4,with all kinds of motor
1,Parallel output, compact structure, transmitting torque,
2,flange and foot mounting;
3,with some kinds of motor;
4,min :1
Technical data:
1,output torque:200-18000(N.m)
2,rated power:0.18-200(kw)
3,input speed:≤1500 (rpm)
4,output speed:≤393(rpm)
5,transmission ratio:≥3.81
6,series:2-3
7,install form:M1-M6
8,Model no. :F/FA/FF/FAF/FH(37/47/57/67/77/87/97/107/127/157)
Other:
1,Parallel output, compact structure, transmitting torque, smooth, low noise and long life.
2,Installation: base mounting, flange installation, torque arm installation.
3,The basic level 2 input/output rotation direction contrary; same, tertiary, Combination another consultation.
4,Output modes: the hollow shaft output or solid shaft output.
If you need any other style needs, please don't feel trouble direct contact with me.
Parameters list
| Type | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
| Structure form | F FA FF FAF FAZ | |||||||||
| Input power(KW) | 0.18-3 | 0.18-3 | 0.18-5.5 | 0.18-5.5 | 0.37-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 | 11-200 |
| Transmission ratio | 3.81-128.51 | 5.06-189.39 | 5.18-199.70 | 4.21-228.99 | 4.30-281.71 | 4.12-270.68 | 4.68-280.76 | 6.20-254.40 | 4.63-172.17 | 11.92-267.43 |
| Allowable torque(N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
| gearbox Weight(kg) | 13 | 18 | 34 | 55 | 90 | 150 | 260 | 402 | 700 | 1700 |

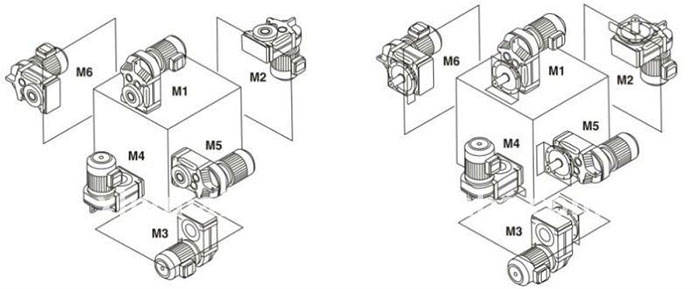

Install form
structural drawing
